metallized Ceramics11

Metallized ceramics is coated witha metal film (molybdenum, manganese, tungsten, silver, etc.) on the surface of ceramics, which is sintered in a metallized high-temperature furnace to achieve a firm combination of ceramics and metals. At pr
Products Inquiry

Product Details

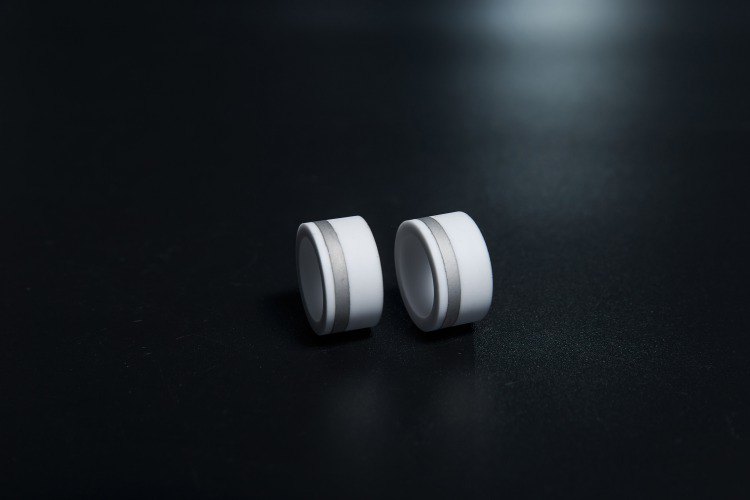

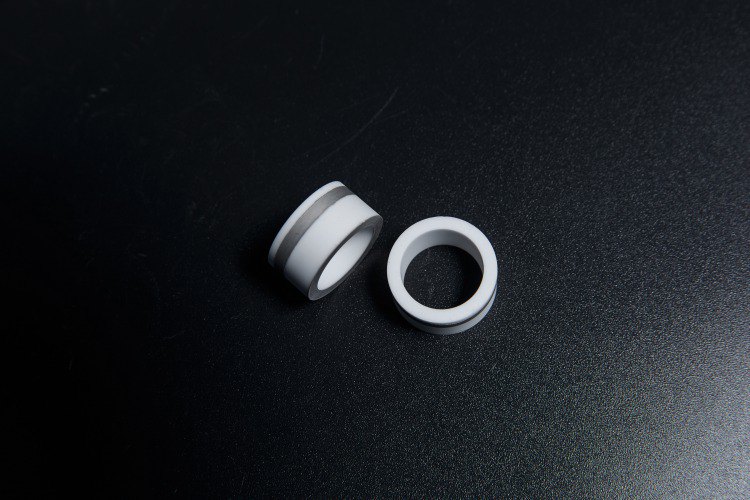

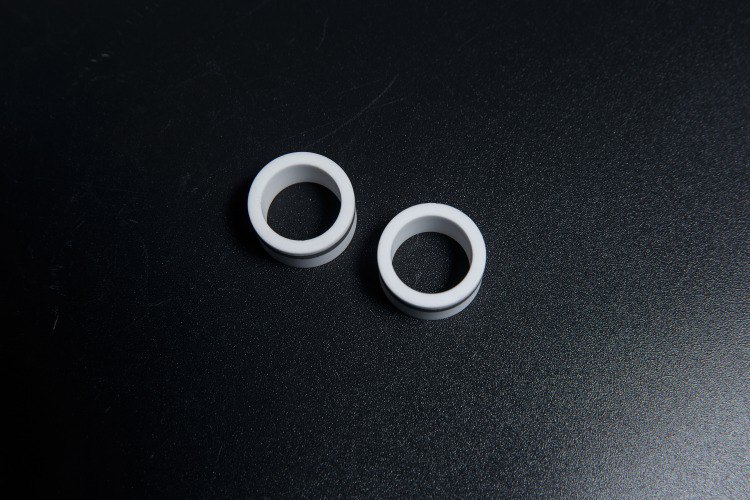

Metallized ceramics is coated witha metal film (molybdenum, manganese, tungsten, silver, etc.) on the surface of ceramics, which is sintered in a metallized high-temperature furnace to achieve a firm combination of ceramics and metals. At present, the company has thick film method, film method, activation method and other processes, can achieve 95%-99.7% alumina ceramics, aluminum nitride ceramics, beryllium ceramics, sapphire, diamond and other surface metallization.


Item


Unit

A-95
A-75
MS-1
Bulk Density
ambient temperatures
g/cm³
≥3.64
≥3.2
≥2.7
Helium Leak Rate(Tightness)

pa.m3/s
≤1×10 ^-11
——
——

Flexural Strength
ambient temperatures
Mpa
336.1
280
160

Average Linear Expansion Coefficient
(20~500)℃

1/℃
7.27×10^-6
6.21×10^-6
8.48×10^-6
(20~800)℃
7.73×10^-6
——
——
Dielectric Constant
Mhz20℃

9.4
8.7
7.5


Volume Resistivity
100℃


Ω.cm
5.2×10^15
4.5×10^13
3.7×10^13
300℃
5.6×10^14
——
——
500℃
4.8×10^13
——
——
Dielectric Loss
20℃

2.4×10^-4
≤10×10^-4
≤8×10^-4
DC Breakdown Strength

KV/mm
42.0
34
28

Thermal Stability
ambient temperatures~800℃


通过pass
——
——

Chemical Stability
10%HCI

Mg
4.657
——
——
1:9NaOH
0.075
——
——


Area
Gauge length
Maximum load
Maximum stress
Unit
mm2
mm
kN
MPa
1
122.0000
100.0000
13.1016
107.390
2
122.0000
100.0000
16.9062
138.576
3
122.0000
100.0000
13.1273
107.601
4
122.0000
100.0000
14.4523
118.462
5
122.0000
100.0000
12.2820
100.672
6
122.0000
100.0000
13.2656
108.735
7
122.0000
100.0000
13.8773
113.749
8
122.0000
100.0000
17.4781
143.263
Average value


14.3113
117.306





SEM image of metallized layer was enlarged by 4000 times     SEM image of ceramic part enlarged by 500 times
